sff::SFFostream< C > Class Template Reference

#include <sffostream.h>

Inheritance diagram for sff::SFFostream< C >:

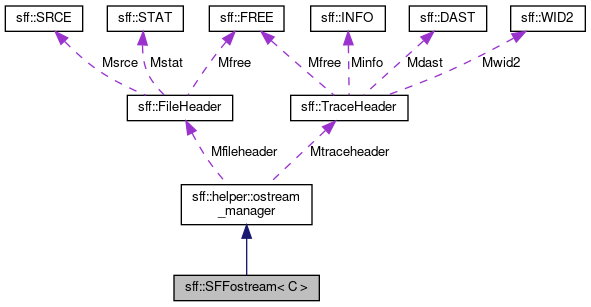

Collaboration diagram for sff::SFFostream< C >:

Public Types
typedef C	Tseries
typedef C::Tcoc	Tcseries
typedef helper::ostream_manager	Tbase

Public Member Functions
	SFFostream (std::ostream &os, const bool &debug=false)
	~SFFostream ()
void	setseries (const Tcseries &series)
	finish previous trace and start with a new one More...
void	setfileheader (const FileHeader &)
void	settraceheader (const TraceHeader &)
void	setinfo (const INFO &)
void	setwid2 (const WID2 &)
void	setsrce (const SRCE &)
void	setfree (const FREE &)
void	setnormmode (const Enormmode &)
void	nextislast ()
void	clearlast ()
TraceHeader	traceheader () const
const FileHeader &	fileheader () const
const Enormmode &	normmode () const

Protected Member Functions
void	flushheader ()
	flush file header to output (if not done yet) More...

Protected Attributes
std::ostream &	Mos
bool	Mdebug

Private Member Functions
void	write ()

Private Attributes
Tcseries	Mseries
bool	Mhasseries

Detailed Description

template<class C>
class sff::SFFostream< C >

SFF output stream

Note

You have to call the member function setseries() first upon writing a new trace. This will check for a pending trace to be flushed to disc. If there is one, it will be written to file together with all stored header information first. Then the passed series will be copied to a local member data. Notice, that this will be a shallow copy, when using aff::Series objects. The data may still be modified through another handle from the outside, before it is written to the file. After setting the series itself, header information should be passed through the inherited member functions provided by ostream_manager.

Deprecated:

The use of class SFFostream is deprecated. It should be replaced by the corresponding output class in libdatrwxx. SFFostream will no longer be maintained. Thomas Forbriger, 22.3.2013.

Definition at line 111 of file sffostream.h.

---

The documentation for this class was generated from the following file:

• sffostream.h
