stfinv::STFFourierDomainEngine Class Reference
Base class for all engines which operate in the Fourier domain. More...
#include <stfinvfourier.h>

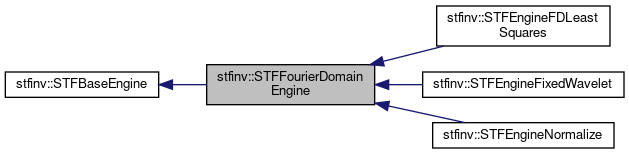

Inheritance diagram for stfinv::STFFourierDomainEngine:

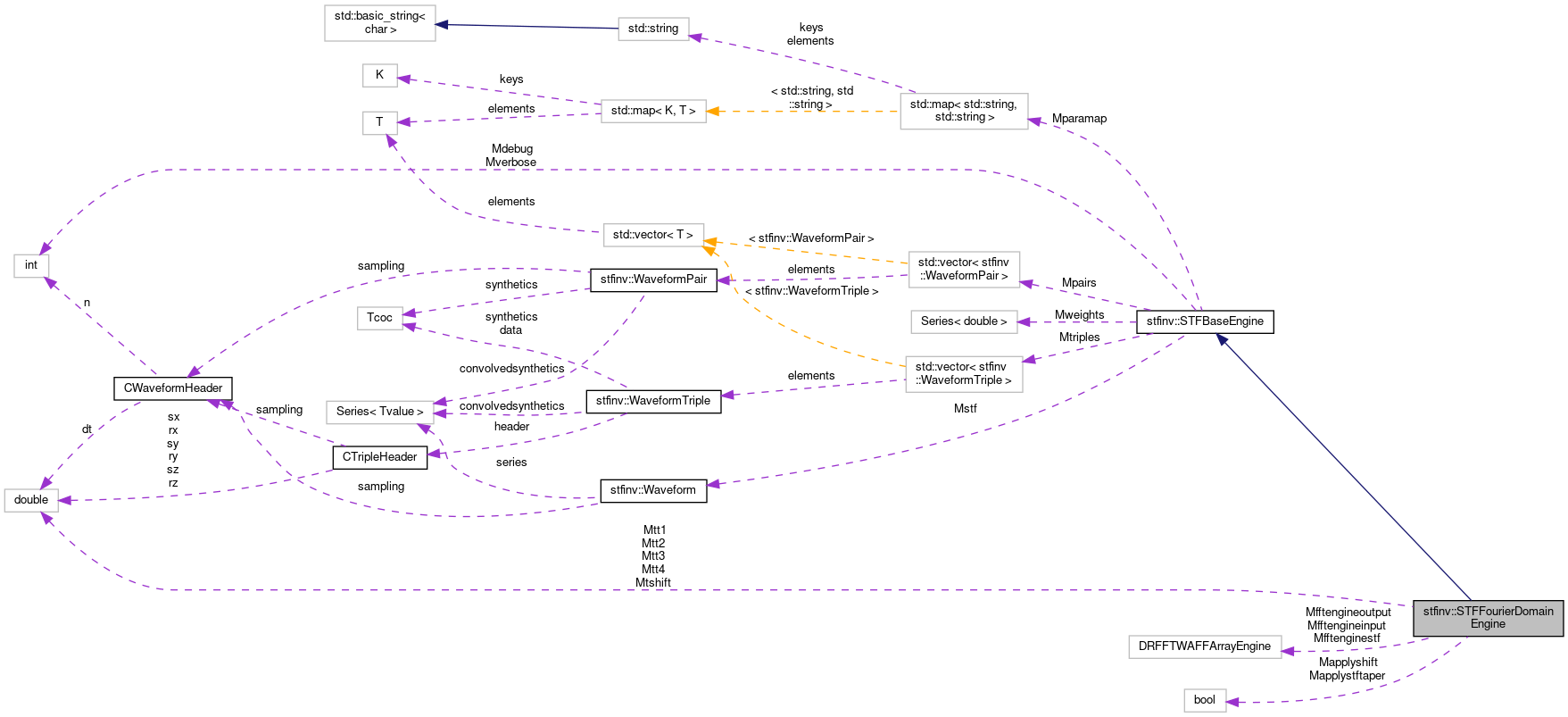

Collaboration diagram for stfinv::STFFourierDomainEngine:
Public Types | |
| typedef Tfftengine::TAseries | TAseries |
| type of array for time series values More... | |
| typedef Tfftengine::TAspectrum | TAspectrum |
| type of array for Fourier transforms More... | |
| typedef stfinv::STFBaseEngine | Tbase |
| typedef to refer to base class More... | |
| typedef fourier::fft::DRFFTWAFFArrayEngine | Tfftengine |
| type of underlying Fourier engine More... | |
Public Member Functions | |
| virtual | ~STFFourierDomainEngine () |
| abstract base requires virtual destructor More... | |
| virtual void | exec () |
| Start engine. More... | |
| virtual void | help (std::ostream &os=std::cout) const |
| print online help More... | |
| virtual const char * | name () const |
| return name of engine More... | |
| virtual void | usage (std::ostream &os=std::cout) const |
| print detailed description More... | |
Basic interface for users | |
| stfinv::Waveform | run () |
| Start engine and return reference to source correction filter. More... | |
Shape query functions | |
| unsigned int | nsamples () const |
| return number of samples used in time series More... | |
| unsigned int | nreceivers () const |
| return number of receiver signals in use More... | |
| unsigned int | npairs () const |
| return number of additional signals to be convolved More... | |
| double | dt () const |
| return sampling interval More... | |
Data query functions | |
| Tseries | stf () const |
| return source correction filter series More... | |
| Tseries::Tcoc | recording (const unsigned int &i) const |
return recorded data at receiver i More... | |
| Tseries::Tcoc | synthetic (const unsigned int &i) const |
return synthetic data at receiver i More... | |
| Tseries | convolvedsynthetic (const unsigned int &i) const |
return synthetic data convolved with stf at receiver i More... | |
| Tseries::Tcoc | series (const unsigned int &i) const |
return synthetic data of pair i More... | |
| Tseries | convolvedseries (const unsigned int &i) const |
return synthetic data convolved with stf for pair i More... | |
Static Public Member Functions | |
| static void | classhelp (std::ostream &os=std::cout) |
| print online help More... | |
| static void | classusage (std::ostream &os=std::cout) |
| print detailed description More... | |
Protected Member Functions | |
| STFFourierDomainEngine (const stfinv::Tvectoroftriples &triples, const stfinv::Waveform &stf, const std::string ¶meters) | |
| Constructor. More... | |
| STFFourierDomainEngine (const stfinv::Tvectoroftriples &triples, const stfinv::Waveform &stf, const stfinv::Tvectorofpairs &pairs, const std::string ¶meters) | |
| Constructor. More... | |
Access and control functions to be used by derived classes. | |
These functions are part of the interface implemented in STFFourierDomainEngine. | |
| void | fftinput () |
| copy input signals to workspace and transform input workspace to Fourier domain More... | |
| void | fftoutput () |
| convolve synthetics with Fourier transform of stf and transform convolved synthetics and stf to time domain and pass signals to user memory space More... | |
| TAspectrum | recordingspec () const |
| return reference to Fourier transform of recorded data More... | |
| TAspectrum | syntheticspec () const |
| return reference to Fourier transform of synthetics More... | |
| TAspectrum | stfspec () const |
| return reference to Fourier transform of stf More... | |
| TAspectrum | recordingcoeff (const unsigned int &i) const |
| return reference to Fourier coeffients of recorded data for frequency i More... | |
| TAspectrum | syntheticcoeff (const unsigned int &i) const |
| return reference to Fourier coefficients of synthetics for frequency i More... | |
| TAspectrum::Tvalue & | stfcoeff (const unsigned int &i) const |
| return reference to Fourier coefficients of stf for frequency i More... | |
| double | frequency (const unsigned int &i) const |
| return value of frequency i in Hz More... | |
| unsigned int | nfreq () const |
| return number of frequencies in use More... | |
Functions presented to derived classes | |
| std::string | parameter (const std::string &key, const std::string &defvalue="false") const |
| return the value of a parameters More... | |
| bool | parameterisset (const std::string &key) const |
| check is parameter was set by user More... | |
| void | checkreceiverindex (const unsigned int &i) const |
| check for vaid receiver index More... | |
| void | checkseriesindex (const unsigned int &i) const |
| check for vaid index off additional time series pair More... | |
| double | weight (const unsigned int &i) const |
| return weight for signal at receiver i More... | |
| aff::Series< double > | weights () const |
| return weights array More... | |
Protected Attributes | |
| int | Mdebug |
| debug level More... | |
| stfinv::Tvectorofpairs | Mpairs |
| Waveform pairs. More... | |
| stfinv::Waveform | Mstf |
| source correction filter. More... | |
| stfinv::Tvectoroftriples | Mtriples |
| Waveform triples. More... | |
| int | Mverbose |
| verbose level More... | |
Private Member Functions | |
Internal processing control functions of. | |
These functions are part of the interface implemented in STFFourierDomainEngine. | |
| void | initialize () |
| initialize work space More... | |
| void | getinput () |
| copy input time series for recorded data and synthetics to workspace More... | |
| void | putoutput () |
| copy workspace time series for convolved synthetics and stf to user memory More... | |
| void | convolve () |
| convolve synthetics with stf More... | |
| void | stfshift () |
| apply time shift to stf prior to FFT to time domain More... | |
| void | taperstf () |
| apply a time domain taper to the correction filter response. More... | |
| TAseries | stfseries () const |
| return reference to time series container of stf More... | |
Private Attributes | |
| bool | Mapplyshift |
| true if shift must be applied More... | |
| bool | Mapplystftaper |
| true if time domain taper should be applied to filter response. More... | |
| Tfftengine | Mfftengineinput |
| combined FFT engine for recorded data and synthetics and additional time series More... | |
| Tfftengine | Mfftengineoutput |
| combined FFT engine for stf and convolved synthetics and additional convolved time series More... | |
| Tfftengine | Mfftenginestf |
| FFT processor for source time function correction filter. More... | |
| double | Mtshift |
| time shift to be applied to STF in order to expose acausal parts More... | |
| double | Mtt1 |
| time values defining taper. More... | |
| double | Mtt2 |
| time values defining taper. More... | |
| double | Mtt3 |
| time values defining taper. More... | |
| double | Mtt4 |
| time values defining taper. More... | |
Detailed Description
Base class for all engines which operate in the Fourier domain.
This is just a base class. The constructor is protected and should only be called from a derived class. The intention of this class is to provide all processing steps common to all engines operating in the Fourier domain in one single base class. The individual engines of different Fourier domain approaches then need not reimplement these steps. They essentially need only provide a specific exec-function (e.g. STFEngineFDLeastSquares::exec).
This class maintains a workspace for Fourier transforms. It provides the FFT from input signals to the workspace through a member functions as well as the convolution of the synthetic data with a given source wavelet Fourier transform and a subsequent FFT to time domain for the convolved synthetics as well as the source correction filter separately.
- What STFFourierDomainEngine does for you
- All derived classes call STFFourierDomainEngine::fftinput prior to processing. This function copies (by calling STFFourierDomainEngine::getinput) the users workspace to the Fourier transform engine STFFourierDomainEngine::Mfftengineinput and transforms the time series to the Fourier domain.
- When processing has finished, the derived classes should call STFFourierDomainEngine::fftoutput. This function first applies a time domain taper to the correction filter impulse response if requested (STFFourierDomainEngine::taperstf). Then it convolves the synthetic data with the source correction filter (STFFourierDomainEngine::convolve). If requested it applies a time shift to the source correction filter as a next step (STFFourierDomainEngine::stfshift). The convolved synthetics as well as the source correction filter then are transformed to time domain and written to the users workspace (STFFourierDomainEngine::putoutput).
- This should take place in the exec-function (e.g. STFEngineFDLeastSquares::exec) of the derived class. I.e. the first statement in the exec function is a call to function STFFourierDomainEngine::fftinput of the base class and the very last statement is a call to function STFFourierDomainEngine::fftoutput of the base class. This also guarantees that STFFourierDomainEngine::fftoutput is only called once per derived correction filter response. This is necessary, since otherwise the taper function and the time shift would be applied twice to the impulse response.
- Layout of Fourier transform arrays
- The workspace for the Fourier transform engine is initialized by fourier::fft::DRFFTWAFFArrayEngine.
Definition at line 108 of file stfinvfourier.h.
