Abstract base class for engines to derive source correction filter. More...

#include <stfinvbase.h>

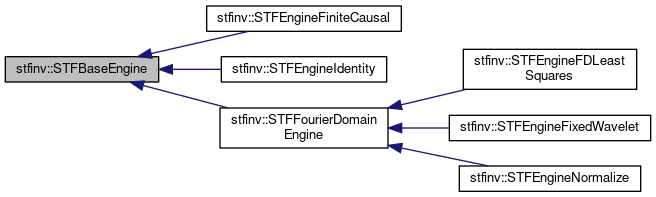

Inheritance diagram for stfinv::STFBaseEngine:

[legend]

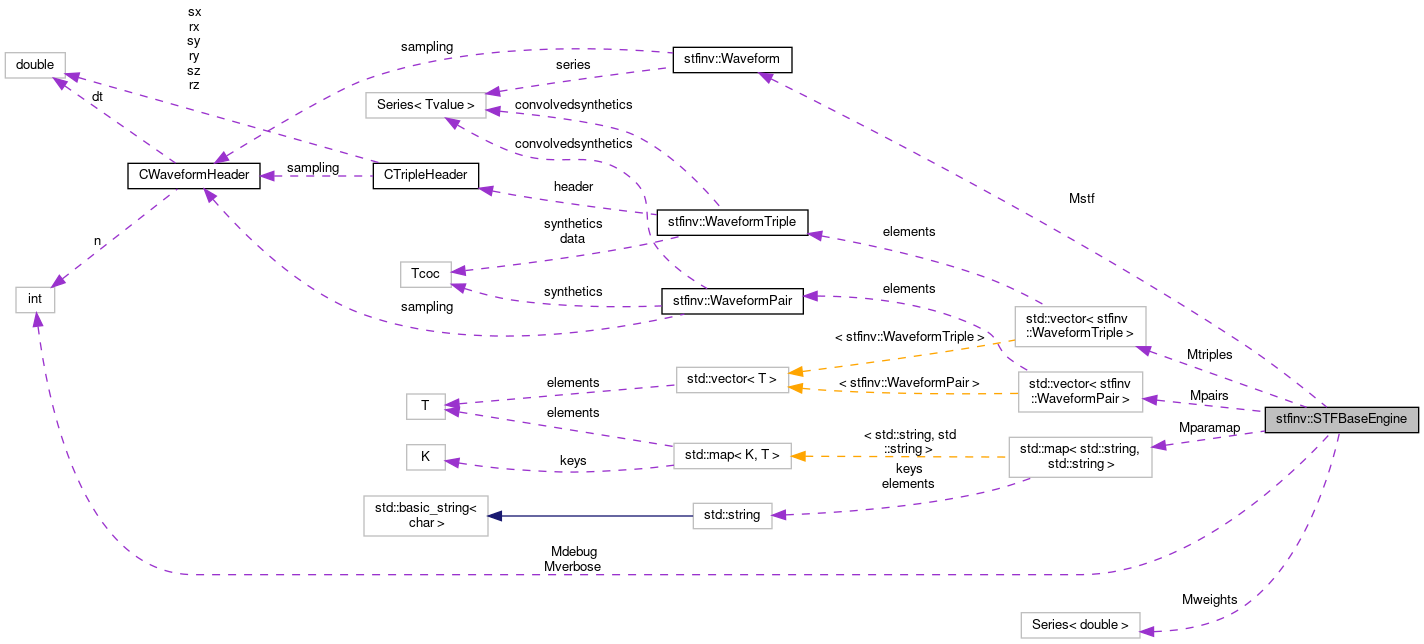

Collaboration diagram for stfinv::STFBaseEngine:

[legend]

Public Member Functions
virtual	~STFBaseEngine ()
	abstract base requires virtual destructor More...

Shape query functions
unsigned int	nsamples () const
	return number of samples used in time series More...

unsigned int	nreceivers () const
	return number of receiver signals in use More...

unsigned int	npairs () const
	return number of additional signals to be convolved More...

double	dt () const
	return sampling interval More...

Data query functions
Tseries	stf () const
	return source correction filter series More...

Tseries::Tcoc	recording (const unsigned int &i) const
	return recorded data at receiver `i` More...

Tseries::Tcoc	synthetic (const unsigned int &i) const
	return synthetic data at receiver `i` More...

Tseries	convolvedsynthetic (const unsigned int &i) const
	return synthetic data convolved with stf at receiver `i` More...

Tseries::Tcoc	series (const unsigned int &i) const
	return synthetic data of pair `i` More...

Tseries	convolvedseries (const unsigned int &i) const
	return synthetic data convolved with stf for pair `i` More...

Protected Member Functions
	STFBaseEngine (const stfinv::Tvectoroftriples &triples, const stfinv::Waveform &stf, const std::string &parameters)
	Constructor. More...

	STFBaseEngine (const stfinv::Tvectoroftriples &triples, const stfinv::Waveform &stf, const stfinv::Tvectorofpairs &pairs, const std::string &parameters)
	Constructor. This constructor additionally takes a vector of time series pairs. In this vector references to synthetic time series data can be passed, which are not used in the process of determining the optimal source correction filter but which are convolved with the new source correction filter on the fly. More...

Functions presented to derived classes
std::string	parameter (const std::string &key, const std::string &defvalue="false") const
	return the value of a parameters More...

bool	parameterisset (const std::string &key) const
	check is parameter was set by user More...

void	checkreceiverindex (const unsigned int &i) const
	check for vaid receiver index More...

void	checkseriesindex (const unsigned int &i) const
	check for vaid index off additional time series pair More...

virtual void	exec ()
	Virtual function to run engine. More...

double	weight (const unsigned int &i) const
	return weight for signal at receiver i More...

aff::Series< double >	weights () const
	return weights array More...

Protected Attributes
int	Mdebug
	debug level More...

stfinv::Tvectorofpairs	Mpairs
	Waveform pairs. More...

stfinv::Waveform	Mstf
	source correction filter. More...

stfinv::Tvectoroftriples	Mtriples
	Waveform triples. More...

int	Mverbose
	verbose level More...

Private Member Functions
Functions implementing base class operation
void	initialize (const std::string &parameters)
	initialize base class More...

void	parseparameters (std::string parameters)
	parse parameters and store them in Mparamap More...

void	checkconsistency () const
	Check consistency of data members. More...

void	setweights (const double &k)
	Set weights according to exponent. More...

Private Attributes
stfinv::tools::Tparamap	Mparamap
	Parameter map. More...

aff::Series< double >	Mweights
	Weights. More...

Basic interface for users
See also Information for users of libstfinv (programmers)
stfinv::Waveform	run ()
	Start engine and return reference to source correction filter. More...

virtual void	help (std::ostream &os=std::cout) const
	print online help More...

virtual void	usage (std::ostream &os=std::cout) const
	print detailed description More...

virtual const char *	name () const
	return name of engine More...

static void	classhelp (std::ostream &os=std::cout)
	print online help More...

static void	classusage (std::ostream &os=std::cout)
	print detailed description More...

Detailed Description

Abstract base class for engines to derive source correction filter.

What STFBaseEngine does for you

The base class takes care of parameter reading. It parses the parameter string passed to its constructor and provides the values through protected member functions:

: The funtion STFBaseEngine::run is called by the user and passes execution to the virtual function STFBaseEngine::exec which ensures that the exec() funtion of the appropriate child class is called to initiate processing.

Initialization of engines

The following happens in a sequence, when engines are initialized:

The desired engine ins initialized either by the user directly or within the frame of STFEngine.
The constructor of this engine immediatly calls teh constructor of its base class. This again calls the constructor of its base class such passing down initialization to STFBaseEngine::STFBaseEngine
The constructor of STFBaseEngine takes the references to the storage locations for signal data as well as a parameter string.
1. It fills its own references to the data storage locations and checks the consistency of parameters passed (size of arrays, sampling rates, etc).
2. It then parses the parameter string and places its contents in the Mparamap parameter map.
3. Then the base class parameters are set either from defaults or form values in the parameter map.
Initialization then continues at the next higher level in the class hierarchy.
1. In the next level constructor additional workspace can be allocated based on the already available references to signal data and parameter values.
2. Further level specific parameters are set due to defaults or values passed in the parameter string.

Handling of parameters: See STFBaseEngine::parameter() and STFBaseEngine::parameterisset() for a description on how parameters are handled within engine classes.

Data

recordings are understood as recorded waveforms. The number of available traces is returned by nreceivers()
synthetics are understood as synthetic waveforms generated with a generic source time function. For each trace of recordings there must be a matching trace of synthetics and vice versa.
convolvedsynthetics are produced from synthetics as a result of the application of the source wavelet correction filter.
series are additional synthetic time series, not used to construct the source-wavelet correction filter. The number of additional series traces is returned by npairs().
convolvedseries are produced from series as a result of the application of the source wavelet correction filter.

See also: Initialization of classes

Todo:: The base class should provide a "log to file" option such that applied weights and signal energies could be reported.

Definition at line 208 of file stfinvbase.h.
