Engine to find a finite, causal source time-history in time domain. More...

Inheritance diagram for stfinv::STFEngineFiniteCausal:

Collaboration diagram for stfinv::STFEngineFiniteCausal:

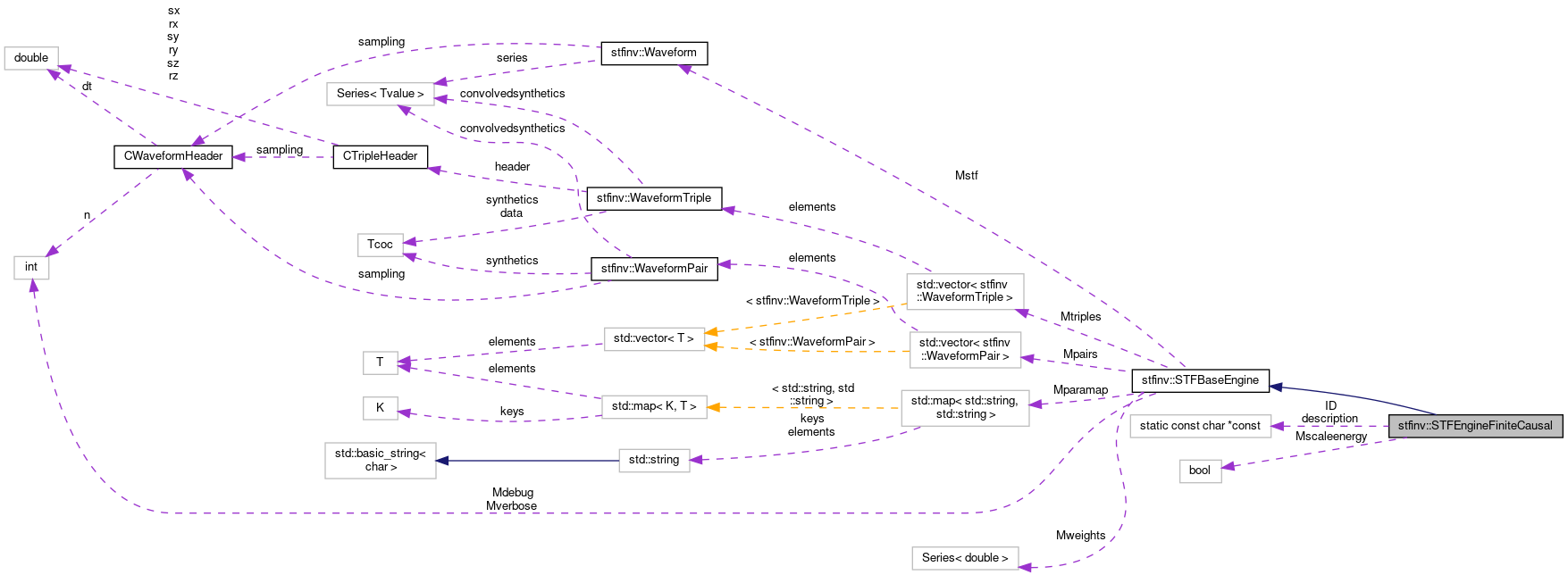

[legend]

Public Types
typedef stfinv::STFBaseEngine	Tbase
	typedef to refer to base class More...

Public Member Functions
	STFEngineFiniteCausal (const stfinv::Tvectoroftriples &triples, const stfinv::Waveform &stf, const std::string &parameters)
	Constructor. More...

virtual	~STFEngineFiniteCausal ()
	abstract base requires virtual destructor More...

virtual void	exec ()
	Start engine. More...

virtual void	help (std::ostream &os=std::cout) const
	print online help More...

virtual const char *	name () const
	return name of engine More...

Shape query functions
unsigned int	nsamples () const
	return number of samples used in time series More...

unsigned int	nreceivers () const
	return number of receiver signals in use More...

unsigned int	npairs () const
	return number of additional signals to be convolved More...

double	dt () const
	return sampling interval More...

Data query functions
Tseries	stf () const
	return source correction filter series More...

Tseries::Tcoc	recording (const unsigned int &i) const
	return recorded data at receiver `i` More...

Tseries::Tcoc	synthetic (const unsigned int &i) const
	return synthetic data at receiver `i` More...

Tseries	convolvedsynthetic (const unsigned int &i) const
	return synthetic data convolved with stf at receiver `i` More...

Tseries::Tcoc	series (const unsigned int &i) const
	return synthetic data of pair `i` More...

Tseries	convolvedseries (const unsigned int &i) const
	return synthetic data convolved with stf for pair `i` More...

Static Public Member Functions
static void	classhelp (std::ostream &os=std::cout)
	print online help More...

Static Public Attributes
static const char *const	description
	short description of this engine More...

static const char *const	ID
	ID used to select thsi engine. More...

Protected Member Functions
Functions presented to derived classes
std::string	parameter (const std::string &key, const std::string &defvalue="false") const
	return the value of a parameters More...

bool	parameterisset (const std::string &key) const
	check is parameter was set by user More...

void	checkreceiverindex (const unsigned int &i) const
	check for vaid receiver index More...

void	checkseriesindex (const unsigned int &i) const
	check for vaid index off additional time series pair More...

double	weight (const unsigned int &i) const
	return weight for signal at receiver i More...

aff::Series< double >	weights () const
	return weights array More...

Protected Attributes
int	Mdebug
	debug level More...

stfinv::Tvectorofpairs	Mpairs
	Waveform pairs. More...

stfinv::Waveform	Mstf
	source correction filter. More...

stfinv::Tvectoroftriples	Mtriples
	Waveform triples. More...

int	Mverbose
	verbose level More...

Basic interface for users
See also Information for users of libstfinv (programmers)
stfinv::Waveform	run ()
	Start engine and return reference to source correction filter. More...

virtual void	usage (std::ostream &os=std::cout) const
	print detailed description More...

static void	classusage (std::ostream &os=std::cout)
	print detailed description More...

Detailed Description

Engine to find a finite, causal source time-history in time domain.

Attention: This engine is not yet implemented. The concept of the approach is drafted in the comments to the class declaration. As long a stfinv::STFEngineFiniteCausal is not made available through stfinv::STFEngine::initialize it must be regarded as a stub.

: data samples
: raw synthetics
: source time-history to be derived
$s^c_l=\sum\limits_k s_{(l-k)} q_k$ : convolved synthetics
$E=\sum\limits_l (d_l-s^c_l)^2$ : misfit to be minized

$\frac{\partial E}{\partial q_j} =\frac{\partial}{\partial q_j} \left(\sum\limits_l \left(d_l-\sum\limits_k s_{(l-k)} q_k\right)^2\right) = \sum\limits_l \frac{\partial}{\partial q_j} \left(d_l-\sum\limits_k s_{(l-k)} q_k\right)^2 = -2 \sum\limits_l s_{(l-j)} \left(d_l-\sum\limits_k s_{(l-k)} q_k\right) = -2 \sum\limits_l s_{(l-j)} d_l +2 \sum\limits_l s_{(l-j)} \sum\limits_k s_{(l-k)} q_k$

Least-squares condition:

$\frac{\partial E}{\partial q_j}\stackrel{!}{=}0,\quad \forall j$

$\sum\limits_l s_{(l-j)} \sum\limits_k s_{(l-k)} q_k = \sum\limits_l s_{(l-j)} d_l ,\quad \forall j$

System of linear equations:

$\sum\limits_k \underbrace{\left(\sum\limits_l s_{(l-j)} s_{(l-k)}\right)}_{=M_{jk}} q_k = \underbrace{\sum\limits_l s_{(l-j)} d_l}_{=r_j}$

index range is defined on base of index range for data and desired finite length of source time-history
additional traces are to be added by adding further terms to the misfit function, which results in further terms in the system of linear equations. These terms should be given appropriate weights
data should be normalized, such that a misfit of 1 is meaningful; this is easily done, by scaling all seismograms samples with the same factor (data as well as synthetics)
an additional constraint could be applied to the by adding a term $\sum\limits_l\left(Q_l q_l\right)^2$ to the msifit ; this will result in a simple additional term on the left-hand-side of the system of linear equations; a reasonable weight must be given to this term

Todo:: STFEngineTDCausalConvolution is a rudiment to be filled with reasonable code. To date the source code file is used to develop the theory.

Definition at line 108 of file stfinvfinitecausal.h.
