Fourier domain least squares engine. More...

#include <stfinvfdleastsquares.h>

Inheritance diagram for stfinv::STFEngineFDLeastSquares:

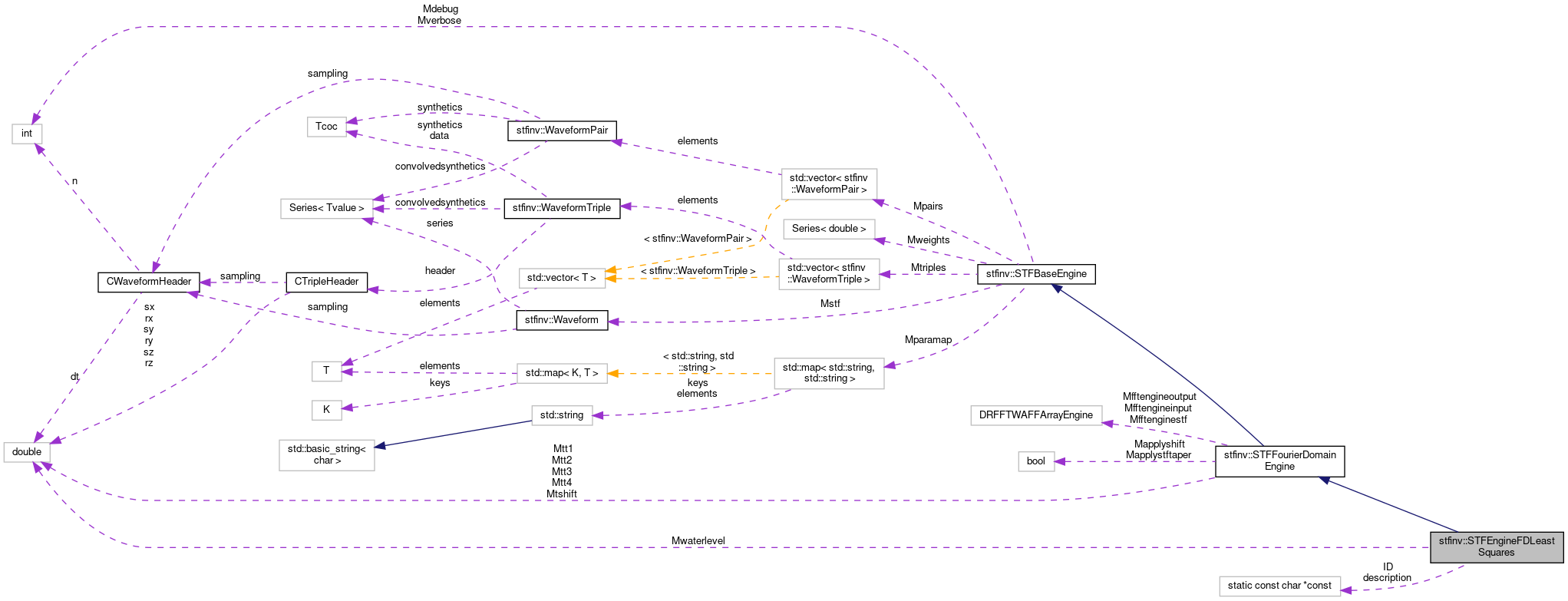

Collaboration diagram for stfinv::STFEngineFDLeastSquares:

[legend]

Public Types
typedef Tfftengine::TAseries	TAseries
	type of array for time series values More...

typedef Tfftengine::TAspectrum	TAspectrum
	type of array for Fourier transforms More...

typedef stfinv::STFFourierDomainEngine	Tbase
	typedef to refer to base class More...

typedef fourier::fft::DRFFTWAFFArrayEngine	Tfftengine
	type of underlying Fourier engine More...

Public Member Functions
	STFEngineFDLeastSquares (const stfinv::Tvectoroftriples &triples, const stfinv::Waveform &stf, const std::string &parameters)
	Constructor. More...

	STFEngineFDLeastSquares (const stfinv::Tvectoroftriples &triples, const stfinv::Waveform &stf, const stfinv::Tvectorofpairs &pairs, const std::string &parameters)
	Constructor. More...

virtual	~STFEngineFDLeastSquares ()
	abstract base requires virtual destructor More...

virtual void	exec ()
	Start engine. More...

virtual void	help (std::ostream &os=std::cout) const
	print online help More...

virtual const char *	name () const
	return name of engine More...

virtual void	usage (std::ostream &os=std::cout) const
	print detailed description More...

Basic interface for users
See also Information for users of libstfinv (programmers)
stfinv::Waveform	run ()
	Start engine and return reference to source correction filter. More...

Shape query functions
unsigned int	nsamples () const
	return number of samples used in time series More...

unsigned int	nreceivers () const
	return number of receiver signals in use More...

unsigned int	npairs () const
	return number of additional signals to be convolved More...

double	dt () const
	return sampling interval More...

Data query functions
Tseries	stf () const
	return source correction filter series More...

Tseries::Tcoc	recording (const unsigned int &i) const
	return recorded data at receiver `i` More...

Tseries::Tcoc	synthetic (const unsigned int &i) const
	return synthetic data at receiver `i` More...

Tseries	convolvedsynthetic (const unsigned int &i) const
	return synthetic data convolved with stf at receiver `i` More...

Tseries::Tcoc	series (const unsigned int &i) const
	return synthetic data of pair `i` More...

Tseries	convolvedseries (const unsigned int &i) const
	return synthetic data convolved with stf for pair `i` More...

Static Public Member Functions
static void	classhelp (std::ostream &os=std::cout)
	print online help More...

static void	classusage (std::ostream &os=std::cout)
	print detailed description More...

Static Public Attributes
static const char *const	description ="least squares in the frequency domain"
	short description of this engine More...

static const char *const	ID ="fdlsq"
	ID used to select this engine. More...

Protected Member Functions
Access and control functions to be used by derived classes.
These functions are part of the interface implemented in STFFourierDomainEngine.
void	fftinput ()
	copy input signals to workspace and transform input workspace to Fourier domain More...

void	fftoutput ()
	convolve synthetics with Fourier transform of stf and transform convolved synthetics and stf to time domain and pass signals to user memory space More...

TAspectrum	recordingspec () const
	return reference to Fourier transform of recorded data More...

TAspectrum	syntheticspec () const
	return reference to Fourier transform of synthetics More...

TAspectrum	stfspec () const
	return reference to Fourier transform of stf More...

TAspectrum	recordingcoeff (const unsigned int &i) const
	return reference to Fourier coeffients of recorded data for frequency i More...

TAspectrum	syntheticcoeff (const unsigned int &i) const
	return reference to Fourier coefficients of synthetics for frequency i More...

TAspectrum::Tvalue &	stfcoeff (const unsigned int &i) const
	return reference to Fourier coefficients of stf for frequency i More...

double	frequency (const unsigned int &i) const
	return value of frequency i in Hz More...

unsigned int	nfreq () const
	return number of frequencies in use More...

Functions presented to derived classes
std::string	parameter (const std::string &key, const std::string &defvalue="false") const
	return the value of a parameters More...

bool	parameterisset (const std::string &key) const
	check is parameter was set by user More...

void	checkreceiverindex (const unsigned int &i) const
	check for vaid receiver index More...

void	checkseriesindex (const unsigned int &i) const
	check for vaid index off additional time series pair More...

double	weight (const unsigned int &i) const
	return weight for signal at receiver i More...

aff::Series< double >	weights () const
	return weights array More...

Protected Attributes
int	Mdebug
	debug level More...

stfinv::Tvectorofpairs	Mpairs
	Waveform pairs. More...

stfinv::Waveform	Mstf
	source correction filter. More...

stfinv::Tvectoroftriples	Mtriples
	Waveform triples. More...

int	Mverbose
	verbose level More...

Private Member Functions
void	initialize ()
	initialize work space More...

Private Attributes
double	Mwaterlevel
	waterlevel More...

Detailed Description

Fourier domain least squares engine.

Concept behind this engine

If

$d_{lk}$ is the Fourier coefficient of recorded data at Frequency and receiver at offset ,
$s_{lk}$ is the Fourier coefficient of the corresponding synthetics and
is that of the sought source tim function,

then this engine will minimize the objective function

$E=\sum\limits_{l,k}\left|w_{lk}\, \left(d_{lk}-s_{lk}q_l\right) \right|^2+\sum\limits_{l}\lambda^2\left|q_l\right|^2 =\chi^2+\psi^2$

with respect to the real part $q_l^\prime$ and the imaginary part $q_l^{\prime\prime}$ of

$q_l=q_l^\prime+i\,q_l^{\prime\prime}.$

In the above expression

$\chi^2=\sum\limits_{l,k}\left|w_{lk}\, \left(d_{lk}-s_{lk}q_l\right) \right|^2$

is the data misfit with weights $w_{lk}$ and

$\psi^2=\sum\limits_{l}\lambda^2\left|q_l\right|^2$

is used for regularization and will introduce a water-level in the deconvolution. $\lambda$ will balance both contributions. The conditions

$\frac{\partial E}{\partial q_l^\prime}\stackrel{!}{=}0 \quad\wedge\quad \frac{\partial E}{\partial q_l^{\prime\prime}}\stackrel{!}{=}0$

result in (Forbriger, 2001, appendix A.3)

$q_l=\frac{ \eta^2\sum\limits_{k}f_k^2\,s_{kl}^\ast\,d_{kl} }{ \lambda^2+\eta^2\sum\limits_{k}f_k^2\,s_{kl}^\ast\,s_{kl} } \quad\forall\, l$

where

$w_{lk}=\eta\,f_k$

and

is a receiver specific weighting factor. Now $\eta$ and $\lambda$ have to be used to balance the regularization. We aim to specify a waterlevel as a fraction of synthetic data energy.

Setting up the waterlevel

The misfit equals one if the scaled energy of the residual $d_{lk}-s_{lk}q_l$ equals the scaled energy of the synthetics $s_{lk}$ and

$\eta^2=\frac{1}{\sum\limits_k f_k^2\sum\limits_l \left|s_{lk}\right|^2}$

is the reciprocal of the scaled energy of the synthetics. If we then choose

$\frac{\lambda^2}{\eta^2}=\frac{\epsilon^2}{N\eta^2}= \frac{\epsilon^2}{N}\sum\limits_k f_k^2\sum\limits_{l=0}^{N-1} \left|s_{lk}\right|^2$

where

is the number of frequencies, then $\epsilon^2$ will specify a waterlevel as a fraction of the scaled energy of the synthetics.

Using Parceval's Theorem to calculate signal energy

Parceval's Theorem for a signal $a(t)$

and its Fourier transform $\tilde{a}(\omega)$ is

$\int\limits_{-\infty}^{+\infty}\bigl|a(t)\bigr|^2\,\textrm{d} t= \int\limits_{-\infty}^{+\infty}\bigl|\tilde{a}(\omega)\bigr|^2\, \frac{\textrm{d} \omega}{2\pi}.$

If $S_{jk}$ are the time series samples corresponding to the Fourier coefficients $\tilde{s}_{lk}$ and $\Delta t$ is the sampling interval then

$\sum\limits_{k=0}^{M-1}\left|S_{jk}\right|^2\,\Delta t= \sum\limits_{l=0}^{M-1}\left|\tilde{s}_{lk}\right|^2\,\frac{1}{M\,\Delta t},$

where

is the number of samples in the time series. In the above calculation the energy sum only uses the positive frequencies and

$\sum\limits_k f_k^2\sum\limits_{l=0}^{N-1}\left|\tilde{s}_{lk}\right|^2 = N\,(\Delta t)^2\, \sum\limits_k f_k^2 \sum\limits_{j=0}^{2N-1}\left|S_{jk}\right|^2.$

Fourier coefficients $s_{lk}$ calculated by the stfinv::STFFourierDomainEngine are not scaled (see documentation of libfourierxx and libfftw3), such that

$\Delta t\,s_{lk}=\tilde{s}_{lk}$

(both, $s_{lk}$ and $\tilde{s}_{lk}$ are Fourier coefficients). Consequently

$\sum\limits_k f_k^2\sum\limits_{l=0}^{N-1}\left|s_{lk}\right|^2 = N\, \sum\limits_k f_k^2 \sum\limits_{j=0}^{2N-1}\left|S_{jk}\right|^2.$

Final calculation recipe

The solution to our problem is

$q_l=\frac{ \sum\limits_{k}f_k^2\,s_{lk}^\ast\,d_{lk} }{ \epsilon^2\,\sum\limits_k f_k^2 \sum\limits_{j=0}^{2N-1}\left|S_{jk}\right|^2 +\sum\limits_{k}f_k^2\,s_{lk}^\ast\,s_{lk} } \quad\forall\, l,$

where

$\sum\limits_{j=0}^{2N-1}\left|S_{jk}\right|^2$

is the sum of the squared sample values $S_{jk}$ of the synthetic time series for receiver $k$

,

are the scaling factors provided by stfinv::STFBaseEngine::weight(), and $\epsilon^2$ is the water level parameter passed to STFEngineFDLeastSquares.

References: Forbriger, T., 2001. Inversion flachseismischer Wellenfeldspektern. PhD thesis, University of Stuttgart. http://elib.uni-stuttgart.de/opus/volltexte/2001/861/

Why was it renamed?: This engine was called 'blind deconvolution' engine. It was renamed to fourier domain least squares engine in October 2011.

This engine understands the recorded data as being the synthetic data being convoled with the STF (source correction filter) and having some noise added. The true impulse response of the subsurface could be obtained by deconvolution of the recorded data with the STF. Neither the impulse response of the subsurface nor the STF are known. For this reason the STF has to be found by minimizing an objective function. For this reason the it is called 'blind' deconvolution.

However, the approach of libstfinv is to convolved the synthetics with the STF to reducde the misfit to the recorded data, not to deconvolve the recorded data. For this reason, maybe, we should better call the approach 'blind convolution'. With respect to image processing techniques, all engines in libstfinv do some kind of 'blind convolution', not only the blind deconvolution engine. Consequently this engine should better be called 'least-squares engine'.

Definition at line 219 of file stfinvfdleastsquares.h.
