class to write SFF data More...

#include <sff.h>

Inheritance diagram for datrw::osffstream:

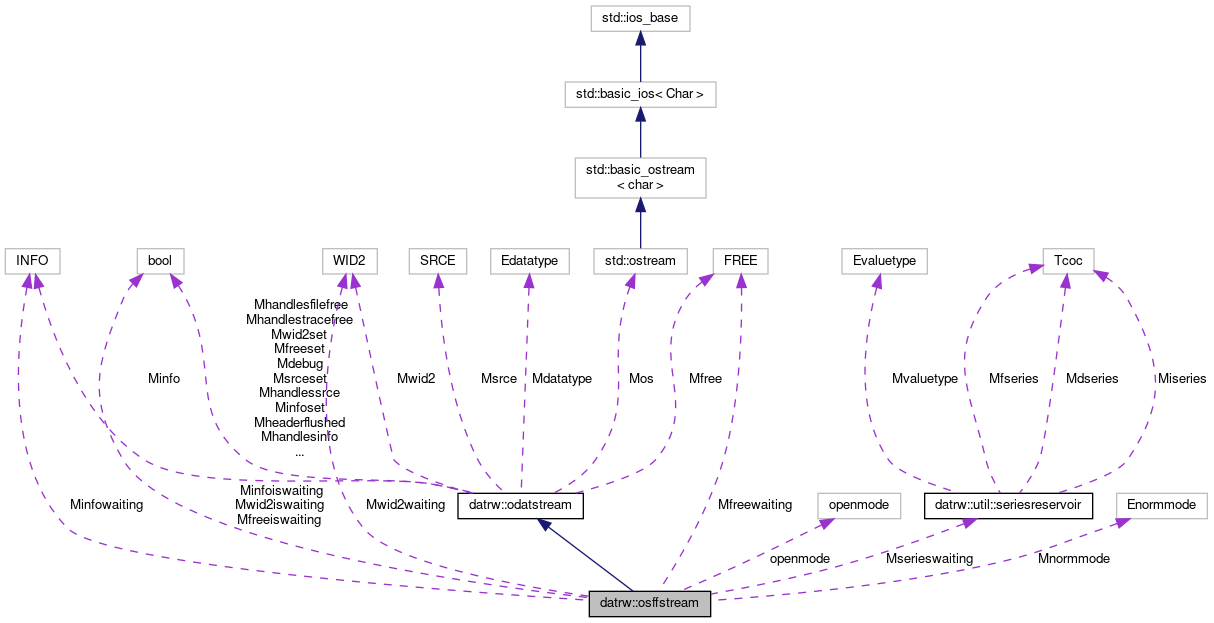

Collaboration diagram for datrw::osffstream:

[legend]

Public Member Functions
	osffstream (std::ostream &os, const std::string &modifier="", const bool &debug=false)

virtual	~osffstream ()

bool	debug ()
	indicate debug mode More...

void	debug (const bool &debug)
	set debug mode More...

void	flushfileheader ()
	flush file header to file More...

bool	handlesfilefree () const
	true if file FREE block can be handled More...

bool	handlesinfo () const
	true if INFO data can be handled More...

bool	handlessrce () const
	true if SRCE data can be handled More...

bool	handlestracefree () const
	true if trace FREE block can be handled More...

Properties	properties () const
	query properties More...

Edatatype	seriestype () const

void	setfree (const sff::FREE &free)

void	setinfo (const sff::INFO &info)

void	setsrce (const sff::SRCE &srce)

void	setwid2 (const sff::WID2 &wid2)

void	writeseries (const Tdseries::Tcoc &series)
	write double data More...

void	writeseries (const Tfseries::Tcoc &series)
	write single precision float data More...

void	writeseries (const Tiseries::Tcoc &series)
	write integer data More...

Static Public Member Functions
static void	help (std::ostream &os=std::cout)

static void	help (std::ostream &os=std::cout, const char *name="idatsream")
	print some info about data conversion. More...

Static Public Attributes
static const std::ios_base::openmode	openmode =std::ios_base::out

Protected Member Functions
void	cleartraceheader ()
	clear trace header flags More...

sff::FREE	free () const
	return FREE data More...

bool	hasfree () const
	free is available More...

bool	hasinfo () const
	info is available More...

bool	hassrce () const
	srce is available More...

bool	haswid2 () const
	wid2 is available More...

sff::INFO	info () const
	return SRCE data More...

void	setdatatype (const Edatatype &daty)

sff::SRCE	srce () const
	return SRCE data More...

sff::WID2	wid2 () const
	return WID2 data More...

virtual void	writefileheader ()
	actually write the file header More...

virtual void	writetrace (const Tdseries::Tcoc &series)
	write double data More...

virtual void	writetrace (const Tfseries::Tcoc &series)
	write single precision float data More...

virtual void	writetrace (const Tiseries::Tcoc &series)
	write integer data More...

Protected Attributes
bool	Mdebug
	global debug flag More...

::sff::Enormmode	Mnormmode

std::ostream &	Mos
	output stream to be used by this class More...

Private Member Functions
void	flushwaitingtrace (const bool &last=false)

Detailed Description

class to write SFF data

Definition at line 98 of file sff.h.

The documentation for this class was generated from the following files:

Public Types
