Inheritance diagram for datrw::mseed::SEED::Steim2Frame:

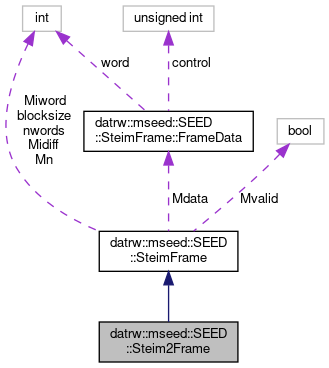

Collaboration diagram for datrw::mseed::SEED::Steim2Frame:

Public Types
enum	ESteimControl { Fspecial =0, Fbyte =1, Fhw =2, Ffw =3, Fdnib1 =2, Fdnib2 =3 }
	possible control codes More...

typedef SteimFrame	Tbase

Public Member Functions
	Steim2Frame (const char *p, const bool &swap=false)

virtual	~Steim2Frame ()

unsigned int	control () const
	return control word More...

ESteimControl	ctrl (const int &i) const
	return control code for word `i` More...

SteimFrame::ESteimControl	ctrl () const
	return control code for current word More...

virtual int	diff () const
	return current difference value More...

int	idiff () const
	return current difference index More...

int	iword () const
	return current word index More...

void	next ()
	step to next difference value More...

void	read (const char *p, const bool &swap=false)
	read data from pointer More...

void	reset ()
	step to first difference value More...

virtual void	setn ()
	set Mn for current word (compression type specific) More...

virtual void	swap ()
	swapping must be performed differently for Steim1 and Steim2 More...

bool	valid () const
	we are still inside the frame More...

int	word (const int &i) const
	return data word `i` More...

int	word () const
	return current data word More...

Static Public Attributes
static const int	blocksize =16*sizeof(int)
	size of frame in bytes More...

static const int	nwords =15
	numer of words to process More...

Protected Attributes
FrameData	Mdata
	frame data (swapped) More...

int	Mn
	number of differences in this word More...

Detailed Description

a structure holding a Steim 2 frame

Definition at line 563 of file seedstructs.h.

The documentation for this class was generated from the following files:
