Array base classThis is a multidimensional (array) container that uses a strided memory layout (Fortran shape) and counted references to data in global memory. For examples see the various test programs. More...

#include <array.h>

Inheritance diagram for aff::ConstArray< T >:

[legend]

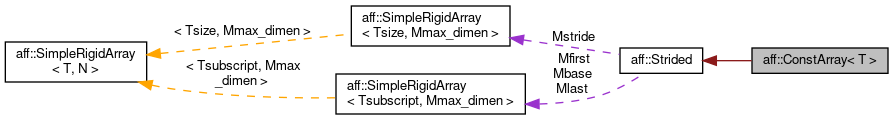

Collaboration diagram for aff::ConstArray< T >:

[legend]

Public Types
Various types
In particular due to our concept of const-correctness we need several typedefs to declare types derived from the element type of the array. This is in particular usefull for function templates that may take any container class as argument (e.g. aff::subarray) or for other classes dealing with any container (e.g. aff::Iterator). By means of these typedefs they may retrieve appropriate types they have to deal with. See also Member typedefs Notes on the const-correctness of arrays
typedef aff::ConstSharedHeap< T >	Trepresentation
	Type of representation. More...

typedef aff::Strided	Tshape
	Type of shape. More...

typedef Tshape::Tstepper	Tstepper
	Type of shape stepper. More...

typedef Tshape::TIndexVec	TIndexVec
	we use this for one of the access operators More...

typedef T	Tvalue
	Element type. More...

typedef T *	Tpointer
	Type of pointer to element. More...

typedef T &	Treference
	Type of reference to element. More...

typedef const T	Tconst_value
	const element type More...

typedef const T *	Tconst_pointer
	Type of pointer to const element. More...

typedef const T &	Tconst_reference
	Type of reference to const element. More...

typedef ConstArray< T >	Tcontainer
	Type of this array. More...

typedef Tcontainer	Tcontainer_of_const
	Type of the array of const values. More...

typedef Tcontainer	Tcoc
	Short for Tcontainer_of_const. More...

Public Member Functions
Array< T >	copyout () const
	create an identical copy (deep copy) of this array More...

const Tshape &	shape () const
	provide access to const shape More...

Tshape &	shape ()
	allow shape manipulation More...

const Trepresentation &	representation () const
	provide restricted access representation More...

Constructors
Note We use the default copy constructor, which automatically invokes the copy constructors of the base classes aff::Strided and aff::SharedHeap<T>. This essentially is a shallow copy of the array, i.e. the copy will reference to the same elements in memory. See aff::Array<T>::copyin() and aff::Array<T>::copyout() for deep copy operations.
	ConstArray ()
	construct from nothing (empty) More...

	ConstArray (const Tshape &shape, const Trepresentation &representation)
	construct from shape and representation More...

Const access operators
Although we generally distinguish between the constness of the container and the constness of the contained data (see Notes on the const-correctness of arrays), we provide const element access operators the prohibit element modification. We assume that a const version of the array is usually meant to be used only for reading.
const T &	operator() (const TIndexVec &index) const
	full dimensionality access More...

const T &	operator() (const Tsubscript &i0) const
	access from 1 index value More...

const T &	operator() (const Tsubscript &i0, const Tsubscript &i1) const
	access from 2 index values More...

const T &	operator() (const Tsubscript &i0, const Tsubscript &i1, const Tsubscript &i2) const
	access from 3 index values More...

const T &	operator() (const Tsubscript &i0, const Tsubscript &i1, const Tsubscript &i2, const Tsubscript &i3) const
	access from 4 index values More...

Shape access
const Tsubscript &	f (const Tsubscript &i) const
	return first index of dimension i More...

const Tsubscript &	l (const Tsubscript &i) const
	return last index of dimension i More...

access declarations
const Tsubscript &	first (const Tsubscript &i) const
	access to base class function More...

const TIndexVec &	first () const
	access to base class function More...

const Tsubscript &	last (const Tsubscript &i) const
	last index of dimension More...

const TIndexVec &	last () const
	return vector of last index values More...

Tsize	size () const
	total number of mapped elements More...

Tsize	size (const Tsubscript &i) const
	size of dimension More...

Protected Member Functions
Tsubscript	offset (const TIndexVec &index) const
	provide access to shape offset functions for derived class More...

Tsubscript	offset (const Tsubscript &i0) const
	provide access to shape offset functions for derived class More...

Tsubscript	offset (const Tsubscript &i0, const Tsubscript &i1) const
	provide access to shape offset functions for derived class More...

Tsubscript	offset (const Tsubscript &i0, const Tsubscript &i1, const Tsubscript &i2) const
	provide access to shape offset functions for derived class More...

Tsubscript	offset (const Tsubscript &i0, const Tsubscript &i1, const Tsubscript &i2, const Tsubscript &i3) const
	provide access to shape offset functions for derived class More...

Private Types
typedef SimpleRigidArray< Tsize, Mmax_dimen >	TSizeVec
	type of size and stride array (always positive) More...

Private Member Functions
void	check_consistency () const
	check consitency between representation and shape More...

Access to shape
Tsize	memory_size () const
	total size of mapped memory range More...

Tsize	size () const
	total number of mapped elements More...

Tsize	size (const Tsubscript &i) const
	size of dimension More...

Tsubscript	first_offset () const
	first mapped position More...

Tsubscript	last_offset () const
	last mapped position More...

const Tsubscript &	first (const Tsubscript &i) const
	first index of dimension More...

const TIndexVec &	first () const
	return vector of first index values More...

const Tsubscript &	last (const Tsubscript &i) const
	last index of dimension More...

const TIndexVec &	last () const
	return vector of last index values More...

const Tsize &	stride (const Tsubscript &i) const
	stride of dimension More...

const TSizeVec &	stride () const
	return vector of stride values More...

Map index values to linear representation range
Tsubscript	offset (const TIndexVec &index) const
	full dimensionality access More...

Tsubscript	offset (const Tsubscript &i0) const
	offset from 1 index value More...

Tsubscript	offset (const Tsubscript &i0, const Tsubscript &i1) const
	offset from 2 index values More...

Tsubscript	offset (const Tsubscript &i0, const Tsubscript &i1, const Tsubscript &i2) const
	offset from 3 index values More...

Tsubscript	offset (const Tsubscript &i0, const Tsubscript &i1, const Tsubscript &i2, const Tsubscript &i3) const
	offset from 4 index values More...

Support for slices and subarrays
Note We intentionally call the subarray and slice functions `shrink` and `collapse` (rather than `subarray` and `slice`), because they do not return another shape instance, which is a subarray or slice. They in fact manipulate the existing instance and return itself! To get a copy, you must first create a copy and then call shrink, collapse, shift or setfirst for this copy.
Strided &	shrink (const TIndexVec &last)
	subarray More...

Strided &	shrink (const TIndexVec &first, const TIndexVec &last)
	subarray More...

Strided &	shrink (const Tdim &i, const Tsubscript &first, const Tsubscript &last)
	subarray More...

Strided &	shrink (const Tdim &i, const Tsubscript &last)
	subarray More...

Strided &	collapse (const Tdim &i, const Tsubscript &index)
	slice More...

Strided &	shift (const Tdim &i, const Tsubscript &index)
	shift More...

Strided &	shift (const TIndexVec &index)
	shift More...

Strided &	setfirst (const Tdim &i, const Tsubscript &index)
	setfirst More...

Strided &	setfirst (const TIndexVec &index)
	setfirst More...

Private Attributes
Trepresentation	Mrepresentation
	representation member More...

Static Private Attributes
static const Tdim	Mmax_dimen =4
	instantiate static member (otherwise the linker won't find it) More...

Detailed Description

template<class T>
class aff::ConstArray< T >

Array base class

This is a multidimensional (array) container that uses a strided memory layout (Fortran shape) and counted references to data in global memory. For examples see the various test programs.

See also: Multidimensional arrays; Common interface concepts; Notes on the const-correctness of arrays; The concept of represented memory; Replicated ConstSharedHeap; aff::Strided; aff::SharedHeap; tests/arraytest.cc; tests/f77test.cc; tests/helpertest.cc

Examples:: tests/arraytest.cc, tests/f77test.cc, tests/helpertest.cc, and tests/operatortest.cc.

Definition at line 172 of file array.h.

The documentation for this class was generated from the following file:

array.h
