write FORTRAN binary data ,This class writes FORTRAN binary data. FORTRAN binary data is always written in chunks of several bytes, where each chunk is preceded and followed by a 4-byte integer byte-count. This class takes care of this structure of byte-counts. More...

#include <fortranio.h>

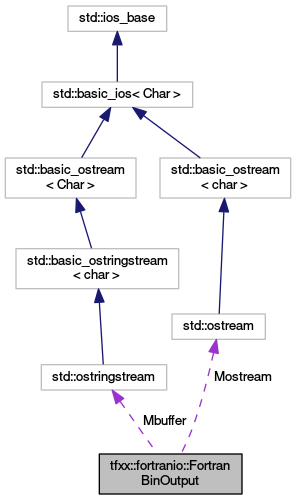

Collaboration diagram for tfxx::fortranio::FortranBinOutput:

[legend]

Public Member Functions
	FortranBinOutput (std::ostream &os)
	start writing to output stream `os` More...

	~FortranBinOutput ()
	we need a flushing destructor More...

template<typename T >
void	put (const T &value)
	put a value to the output More...

void	end_block ()
	finish data block More...

void	write_magic (const char *cmagic)
	write magic number (to separate block) More...

Private Member Functions
void	put_char (const char &c)
	put the next char to the output More...

void	put_chars (const char *buf, const int &n)
	put some chars to the output More...

Private Attributes
std::ostream &	Mostream
	The output stream to write to. More...

std::ostringstream	Mbuffer
	The buffering is done by a stringstream. More...

Detailed Description

write FORTRAN binary data ,

This class writes FORTRAN binary data. FORTRAN binary data is always written in chunks of several bytes, where each chunk is preceded and followed by a 4-byte integer byte-count. This class takes care of this structure of byte-counts.

For convenient use we must buffer the output data. The user just pushes data to the stream and calls function end_block() after each data block. We will then write this block with a preceding and following byte-count. This implies the overhead string-streams introduce to this problem. However file I/O is not the part where we emphasize runtime efficiency.

By creating the object the writing process is initialized. Only basic put-functions (for char type) are provided. Use I/O operators for convenient access.

See also: TEST: Fortran I/O and byte swapping.; tfxx::fortranio::FortranBinInput; tfxx::fortranio::FortranBinOutput& operator<<(tfxx::fortranio::FortranBinOutput&, T&)

Examples:: tests/fortraniotest.cc.

Definition at line 200 of file fortranio.h.

The documentation for this class was generated from the following files:

fileio/fortranio.h
fileio/fortranio.cc
