scaled coordinate.This struct holds one coordinate together with a scale value. It provides functions to support appropriate scaling and to explore dynamic range. More...

#include <sucomanager.h>

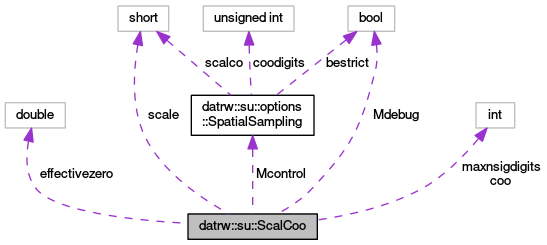

Collaboration diagram for datrw::su::ScalCoo:

[legend]

Public Member Functions
	ScalCoo (const datrw::su::options::SpatialSampling &ctrl, const bool &debug=false)
	constructor More...

void	adjustscale ()
	adjust scale to optimal representation of significant digits More...

int	power () const
	return decimal power of scaling factor More...

void	scaletopower (const int &p)
	scale to given scaling factor as defined by decimal power More...

void	set (const short &s, const int &c)
	set from header fields More...

void	set (const double &v)
	set from coordinate value in meters More...

int	smallestpower (const short &desiredscale=datrw::su::subformat::def::scalco) const
	smallest possible power larger or equal desired More...

double	value () const
	return coordinate value More...

Public Attributes
int	coo
	coordinate More...

datrw::su::options::SpatialSampling	Mcontrol
	control parameters More...

bool	Mdebug
	debug mode More...

short	scale
	scale like scalco More...

Static Public Attributes
static double	effectivezero =datrw::su::subformat::def::thresholdzero
	lower limit of values More...

static int	maxnsigdigits
	maximum number of significant digits to be used More...

Detailed Description

scaled coordinate.

This struct holds one coordinate together with a scale value. It provides functions to support appropriate scaling and to explore dynamic range.

This class is used insed datrw::su::Coordinates to scale coordinates coherently, since SU provides only scaling factors for all horizontal coordinates on one hand and all vertical cooridnates on the other hand together. The functions inside this class are primarily required upon writing SU data.

See also: Coordinates

Definition at line 124 of file sucomanager.h.

The documentation for this struct was generated from the following files:

su/sucomanager.h
su/sucomanager.cc
