datrw::idatstream Class Reference
#include <datread.h>

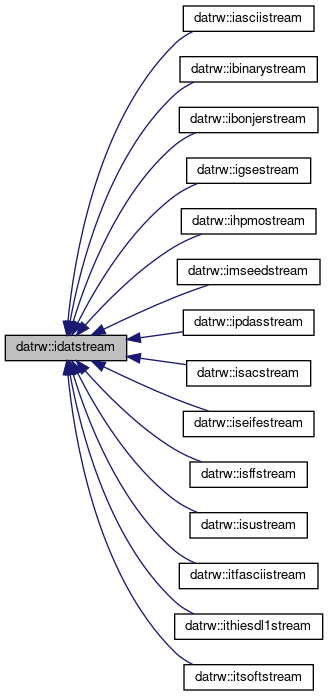

Inheritance diagram for datrw::idatstream:

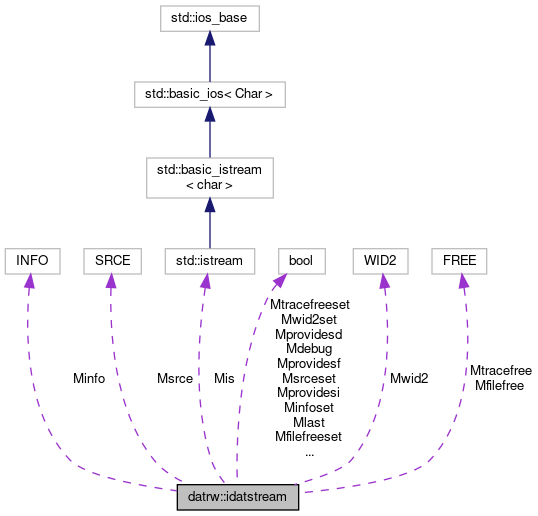

Collaboration diagram for datrw::idatstream:
Public Member Functions | |
| virtual | ~idatstream () |
| bool | debug () |
| indicate debug mode More... | |
| void | debug (const bool &debug) |
| set debug mode More... | |
| virtual Tdseries | dseries () |
| sff::FREE | free () const |
| virtual Tfseries | fseries () |
| bool | good () const |
| bool | hasfree () const |
| bool | hasinfo () const |
| bool | hassrce () const |
| sff::INFO | info () const |
| virtual Tiseries | iseries () |
| bool | last () const |
| Properties | properties () const |
| bool | providesd () const |
| bool | providesf () const |
| bool | providesi () const |
| virtual void | skipseries () |
| sff::SRCE | srce () const |
| sff::WID2 | wid2 () const |
Static Public Member Functions | |
| static void | help (std::ostream &os=std::cout, const char *name="idatsream") |
| print some info about data conversion. More... | |
Protected Member Functions | |
| idatstream (std::istream &is, const bool &providesd=false, const bool &providesf=false, const bool &providesi=false, const bool &debug=false) | |
| void | newtrace () |
| void | setfilefree (const sff::FREE &free) |
| void | setinfo (const sff::INFO &info) |
| void | setlast () |
| void | setsrce (const sff::SRCE &srce) |
| void | settracefree (const sff::FREE &free) |
| void | setwid2 (const sff::WID2 &wid2) |
Protected Attributes | |
| bool | Mdebug |
| std::istream & | Mis |
Private Attributes | |
| sff::FREE | Mfilefree |
| bool | Mfilefreeset |
| sff::INFO | Minfo |
| bool | Minfoset |
| bool | Mlast |
| bool | Mprovidesd |
| bool | Mprovidesf |
| bool | Mprovidesi |
| sff::SRCE | Msrce |
| bool | Msrceset |
| sff::FREE | Mtracefree |
| bool | Mtracefreeset |
| sff::WID2 | Mwid2 |
| bool | Mwid2set |
Detailed Description
input stream to read seismic data (abstract base)
The concept is based on SFF data contents and we will make use of SFF structures.
- Note
- The convention is that a call to dseries(), fseries(), iseries() or skipseries() will scan the next trace in the input file and will fill all header structures. While dseries(), fseries() and iseries() return samples, skipseries() simply discards them. Thus use the time series input operator first for each trace. Read out header information afterwards.
- For this reason only the member functions dseries(), fseries(), iseries() and skipseries() have to be virtual. They are responsible for filling the header data structures with appropriate values upon scanning/reading a time series.
- All derived classes are expected to provide static members openmode and isbinary
The documentation for this class was generated from the following files:
