main()

int main	(	int	iargc,
		char *	argv[]
	)

Definition at line 364 of file geophone.cc.

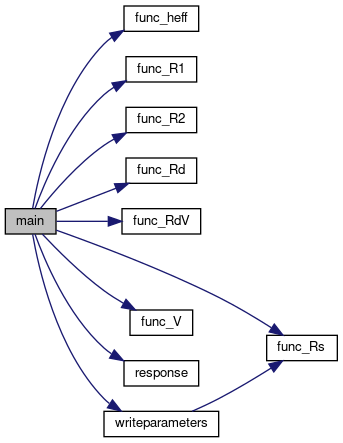

References Tparameters::C, Toptions::debug, Toptions::dt, Tparameters::fn, func_heff(), func_R1(), func_R2(), func_Rd(), func_RdV(), func_Rs(), func_V(), GEOPHON_VERSION, Tparameters::heff, Tparameters::hoc, Toptions::outfile, Toptions::R1, Toptions::R1mode, Toptions::R2mode, Tparameters::Rc, Toptions::Rd, Toptions::Rd1mode, Toptions::resfile, response(), Tparameters::Ri, Toptions::saveresponse, Toptions::T, Tparameters::type, Toptions::V, Toptions::verbose, writeparameters(), and Toptions::writeresfile.

{

  // define usage information
  char usage_text[]=
  {
    GEOPHON_VERSION "\n"
    "usage: geophone [-hoc hoc] [-heff heff] [-Ri Ri] [-Rc Rc]" "\n"
    "                [-C C] [-fn fn] [-type type] [-o file]" "\n"
    "                [-T T] [-dt dt] [-Rd1 Rd,R1]" "\n"
    "   or: geophone --help|-h" "\n"
  };

  // define full help text
  char help_text[]=
  {
    "-v                 be verbose" "\n"
    "-DEBUG             debug mode" "\n"
    "\n"
    "geophone parameters:\n"
    "-hoc hoc           open circuit damping" "\n"
    "-Rc Rc             coil resistance" "\n"
    "-C C               geophone constant" "\n"
    "                   C=Rt*Bc*fn=(K**2)/(4*pi*m)" "\n"
    "-fn fn             natural frequency" "\n"
    "-type type         geophone type" "\n"
    "\n"
    "recorder parameters:\n"
    "-Ri Ri             recorder input resistance" "\n"
    "\n"
    "desired damping:\n"
    "-heff heff         desired effective damping" "\n"
    "\n"
    "output parameters:\n"
    "-o file            name of file to save impulse response" "\n"
    "                   parameters T and dt specify the sampling for\n"
    "                   the impulse response time series\n"
    "-T T               length of time series" "\n"
    "                   as a fraction of the natural period" "\n"
    "-dt dt             sampling interval" "\n"
    "                   as a fraction of the natural period" "\n"
    "\n"
    "-resfile file      Write an appropriate seife deconvolution" "\n"
    "                   filter to \"file\". The filter is designed" "\n"
    "                   to deconvolve the output of the damped geophone" "\n"
    "                   to the repsonse of the standard application (i.e." "\n"
    "                   geophone connected directly to recorder)." "\n"
    "\n"
    "alternative modes of operation:\n"
    "-R2 V              return R2 for voltage division factor V" "\n"
    "                   specified relative to the voltage obtained" "\n"
    "                   by standard operation (Ri being the only" "\n"
    "                   resistance external to the geophone)." "\n"
    "                   heff is ignored in this case." "\n"
    "-R1 V              return R1 and R2 for voltage division factor V" "\n"
    "                   maintaining a damping of heff." "\n"
    "                   V is specified like with option -R2." "\n"
    "-Rd1 Rd,R1         The values R1 and Rd specify the additional" "\n"
    "                   resistance in series with the geophone (R1) and" "\n"
    "                   parallel to the recorder (Rd). The program" "\n"
    "                   returns the resulting response." "\n"
    "\n"
    "All damping values are given as a fraction of critical damping." "\n"
    "\n"
    "Usually you specify hoc, Ri, Rc, C, fn, and heff. Then the program" "\n"
    "will tell you which shunt resistance to use parallel to the recorder" "\n"
    "input terminals." "\n"
    "\n"
    "In case you specify V by option -R2, the program will ignore the" "\n"
    "desired effective damping heff and will tell you, which shunt" "\n"
    "resistance to use to obtain the desired voltage division factor V." "\n"
    "\n"
    "In case you specify V by option -R1, the program will tell you," "\n"
    "which shunt and series resistance to use to obtain the desired" "\n"
    "voltage division factor V and damping heff." "\n"
    "\n"
    "In case you specify the series resistance R1 and the shunt resistantce\n"
    "Rd in parallel to the recorder by option -Rd1, the program returns" "\n"
    "the resulting response." "\n"
    "\n"
    "Circuit diagram:\n"
    "\n"
    "    +--------+     +-----+           +--------+\n"
    "    |   +----|-----| R1  |-----+-----|---+    |\n"
    "    |   |    |     +-----+     |     |   |    |\n"
    "    | +---+  |               +---+   | +---+  |\n"
    "    | |   |  |               |   |   | |   |  |\n"
    "    | |Rc |  |               |Rd |   | |Ri |  |\n"
    "    | |   |  |               |   |   | |   |  |\n"
    "    | +---+  |               +---+   | +---+  |\n"
    "    |   |    |                 |     |   |    |\n"
    "    |   +----|-----------------+-----|---+    |\n"
    "    |        |                       |        |\n"
    "    |geophone|                       |recorder|\n"
    "    +--------+                       +--------+\n"
    "       ||||\n"
    "       ||||  usually R1=0 and Rd=infinity\n"
    "        ||\n"
    "        ||   use finite Rd for larger \n"
    "        ||   effective damping\n"
    "        ||\n"
    "        ||   use R1 to set up a voltage divider\n"
    "        \\/   and small effective damping\n"
    "\n"
    "Background:\n"
    "Usually geophones are directly connected to the recording system.\n"
    "This is equivalent to R1=0 and Rd=infinity. With Ri >> Rc the\n"
    "effective damping of the geophone is only slightly larger than\n"
    "the open circuit damping of the geophone.\n"
    "\n"
    "If a damping of the geophone larger than the open circuit damping\n"
    "is desired, a finite Rd can be connected in parallel to the input\n"
    "of the recording system. This program provides the appropriate value\n"
    "if the desired effective damping is passed in the parameter to\n"
    "option -heff. Alternatively the effective damping heff is\n"
    "provided as output, if values for R1 and Rd are passed as\n"
    "parameters to option -Rd1.\n"
    "\n"
    "In some cases near offset geophones are saturated in the recording\n"
    "system by ground motion close to the seismic source. In this case a\n"
    "small resistance Rd can be used to set up a voltage divider with\n"
    "the coil resistance Rc thus makeing the voltage to be recorded\n"
    "smaller accordingly. At the same time this will strongly damp the\n"
    "geophone itself thus preventing mechanical saturation and clipping.\n"
    "If this is desired, the parallel resistance required for a given\n"
    "amplitude factor V is provided by the program, if V is passed as\n"
    "a parameter to option -R1.\n"
    "\n"
    "If strong overdamping of the geophone has to be avoided, for\n"
    "example to maintain the same effective damping for all geophones\n"
    "in a profile, a series resistance R1 together with a parallel\n"
    "resistance Rd can be used to adjust a voltage divider with\n"
    "factor V and a desired effective damping heff at the same time.\n"
    "In this case pass V as a parameter to option -R2 and heff as a\n"
    "parameter to option -heff.\n"
    "\n"
    "If R1 and Rd are known from the configuration of the seismic\n"
    "experiment, you can use both values as parameters to option\n"
    "-Rd1 in order to obtain the effective response characteristic\n"
    "of the geophone.\n"
    "\n"
    "Geophone response are provided in three ways:\n"
    "1. Effective geophone parameters are printed to standard output.\n"
    "2. A filename passed as a parameter to option -resfile will\n"
    "   cause the program to create a filter control file with this\n"
    "   name. This filter control file can be used together with\n"
    "   stufi or tidofi in order to restore the response of a\n"
    "   geophone as used with R1=0 and Rd=infinity in terms of\n"
    "   effective damping as well as singal amplitude.\n"
    "3. A filename passed as a parameter to option -o will cause\n"
    "   the program to produce an SFF data file containing the\n"
    "   the impulse response of the geophone. The first trace contains\n"
    "   the response of the geophone as if recorded with R1=0 and\n"
    "   Rd=infinity. The second trace contains the impulse response\n"
    "   of a geophone if operated with a finite R1 and Rd as\n"
    "   specified by the command line arguments. The effective\n"
    "   geophone parameters are given in the first line of the\n"
    "   trace FREE block.\n"
  };

  // define commandline options
  using namespace tfxx::cmdline;
  static Declare options[]=
  {
    // 0: print help
    {"help",arg_no,"-"},
    // 1: verbose mode
    {"v",arg_no,"-"},
    // 2: open circuit damping
    {"hoc",arg_yes,"0.315"},
    // 3: desired effective damping
    {"heff",arg_yes,"0.707"},
    // 4: recorder input resistance
    {"Ri",arg_yes,"20000."},
    // 5: coil resistance
    {"Rc",arg_yes,"375."},
    // 6: geophone constant
    {"C",arg_yes,"6000."},
    // 7: natural frequency
    {"fn",arg_yes,"8."},
    // 8: geophone type
    {"type",arg_yes,"SM-4"},
    // 9: geophone type
    {"o",arg_yes,"response.sff"},
    // 10: length of time series
    {"T",arg_yes,"10."},
    // 11: sampling interval
    {"dt",arg_yes,"1.e-2"},
    // 12: series resistance
    {"R1",arg_yes,"0."},
    // 13: series resistance
    {"R2",arg_yes,"1.e12"},
    // 14: Rd and R1
    {"Rd1", arg_yes, "-"},
    // 15: deconvolution filter
    {"resfile", arg_yes, "res.fil"},
    // 16: deconvolution filter
    {"DEBUG", arg_no, "-"},
    {NULL}
  };

  // no arguments? print usage...
  if (iargc<1)
  {
    cerr << usage_text << endl;
    exit(0);
  }

  // collect options from commandline
  Commandline cmdline(iargc, argv, options);

  // help requested? print full help text...
  if (cmdline.optset(0))
  {
    cerr << usage_text << endl;
    cerr << help_text << endl;
    exit(0);
  }

  /*
  // dummy operation: print option settings
  for (int iopt=0; iopt<2; iopt++)
  {
    cout << "option: '" << options[iopt].opt_string << "'" << endl;
    if (cmdline.optset(iopt)) {  cout << "  option was set"; }
    else { cout << "option was not set"; }
    cout << endl;
    cout << "  argument (string): '" << cmdline.string_arg(iopt) << "'" << endl;
    cout << "     argument (int): '" << cmdline.int_arg(iopt) << "'" << endl;
    cout << "    argument (long): '" << cmdline.long_arg(iopt) << "'" << endl;
    cout << "   argument (float): '" << cmdline.float_arg(iopt) << "'" << endl;
    cout << "  argument (double): '" << cmdline.double_arg(iopt) << "'" << endl;
    cout << "    argument (bool): '";
    if (cmdline.bool_arg(iopt))
    { cout << "true"; } else { cout << "false"; }
    cout << "'" << endl;
  }
  while (cmdline.extra()) { cout << cmdline.next() << endl; }

  // dummy operation: print rest of command line
  while (cmdline.extra()) { cout << cmdline.next() << endl; }
  */

  Tparameters para;
  para.hoc=cmdline.double_arg(2);
  para.heff=cmdline.double_arg(3);
  para.Ri=cmdline.double_arg(4);
  para.Rc=cmdline.double_arg(5);
  para.C=cmdline.double_arg(6);
  para.fn=cmdline.double_arg(7);
  para.type=cmdline.string_arg(8);

  Toptions opt;
  opt.verbose=cmdline.optset(1);
  opt.saveresponse=cmdline.optset(9);
  opt.outfile=cmdline.string_arg(9);
  opt.T=cmdline.double_arg(10);
  opt.dt=cmdline.double_arg(11);
  opt.R1mode=cmdline.optset(12);
  opt.V=cmdline.double_arg(12);
  opt.R2mode=cmdline.optset(13);
  if (!opt.R1mode) { opt.V=cmdline.double_arg(13); }
  opt.Rd1mode=cmdline.optset(14);
  if (opt.Rd1mode)
  {
    std::string args=cmdline.string_arg(14);
    args.replace(args.find(","),1," ");
    std::istringstream is(args);
    is >> opt.Rd >> opt.R1;
  }
  opt.writeresfile=cmdline.optset(15);
  opt.resfile=cmdline.string_arg(15);
  opt.debug=cmdline.optset(16);

  /*----------------------------------------------------------------------*/

/*
  double Rd=1./(1./((para.C/((para.heff-para.hoc)*para.fn))-para.Rc)
                -(1./para.Ri));
  double hnd=para.hoc+para.C/(para.fn*(para.Ri+para.Rc));
  double Rs=1./((1./Rd)+(1./para.Ri));
  double Afac=100.*para.Ri/(para.Ri+para.Rc);
  double Afacs=100.*Rs/(Rs+para.Rc);
*/

  // calculate reference parameters
  double hnd=func_heff(para.fn, para.hoc, para.C, para.Rc, para.Ri);
  double Afac=func_V(para.Ri, para.Rc);

  double Rd, R1=0., heff, Afaceff, Rs;
  // case Rd1
  if (opt.Rd1mode)
  {
    Rd=opt.Rd;
    R1=opt.R1;
    Rs=func_Rs(para.Ri, Rd, R1);
    heff=func_heff(para.fn, para.hoc, para.C, para.Rc, Rs);
    Afaceff=func_V(para.Ri, para.Rc, R1, Rd);
  }
  // case R1
  else if (opt.R1mode)
  {
    Afaceff=opt.V*Afac;
    heff=para.heff;
    Rs=func_Rs(para.fn, para.hoc, para.C, para.Rc, para.heff);
    Rd=func_R2(para.Ri, para.Rc, Rs, Afaceff);
    R1=func_R1(para.Ri, para.Rc, Rs, Afaceff);
  }
  // case R2
  else if (opt.R2mode)
  {
    R1=0.;
    Afaceff=opt.V*Afac;
    Rd=func_RdV(para.Ri, para.Rc, Afaceff);
    Rs=func_Rs(para.Ri, Rd, 0.);
    heff=func_heff(para.fn, para.hoc, para.C, para.Rc, Rs);
  }
  // default case
  else
  {
    R1=0.;
    heff=para.heff;
    Rs=func_Rs(para.fn, para.hoc, para.C, para.Rc, para.heff);
    Rd=func_Rd(Rs, para.Ri);
    // effective input resistance
    Afaceff=func_V(para.Ri, para.Rc, R1, Rd);
  }

  /*----------------------------------------------------------------------*/
  // report
  writeparameters(cout, "", para, hnd, heff, Rs, R1, Rd, Afac, Afaceff);

  if (opt.saveresponse) {
    if (opt.verbose) {
      cout << endl;
      cout << "write impulse response to " << opt.outfile << endl;
    }

    double dt=opt.dt/para.fn;
    int n=int(opt.T/opt.dt);
    Tseries srnd=response(para.fn,hnd,dt,n);
    srnd *= Afac;
    Tseries sreff=response(para.fn,heff,dt,n);
    sreff *= Afaceff;

    sff::WID2 wid2;
    wid2.dt=dt;

    std::ostringstream oss;
    sff::FREE ndfree, efffree;
    oss.str("");
    oss << para.type << " geophone impulse response ("
      << "fn=" << para.fn << "Hz, " << "h=" << hnd << ")";
    ndfree.append(oss.str());
    oss.str("");
    oss << para.type << " geophone impulse response ("
      << "fn=" << para.fn << "Hz, " << "h=" << heff << ")";
    efffree.append(oss.str());

    TFXX_debug(opt.debug, "geophon (main):",
               "para.heff = " << heff << "\n"
               "oss.str(): " << oss.str());

    std::ofstream ofs(opt.outfile.c_str());
    sff::SFFostream<Tseries> os(ofs);
    os << srnd;
    os << wid2;
    os << ndfree;
    os << sreff;
    os << wid2;
    os << efffree;

  } // if (opt.saveresponse)

  if (opt.writeresfile)
  {
    if (opt.verbose) {
      cout << endl;
      cout << "write deconvolution filter to " << opt.resfile << endl;
    }

    std::ofstream os(opt.resfile.c_str());
    os << "rem  deconvolution filter calculated by" << endl;
    writeparameters(os, "rem  ", para, hnd, heff, Rs, R1, Rd, Afac, Afaceff);
    os << "fac  " << (Afac/Afaceff) << endl;
    os << "he2  " << 1./para.fn << ","
                  << heff << ","
                  << 1./para.fn << ","
                  << hnd << endl;
    os << "end  " << endl;
  } // if (opt.writeresfile)
}

Here is the call graph for this function:
