◆ read()

void datrw::mseed::MiniSEEDRecord::read ( std::istream & is )
read a full MiniSEED record including data samples
Big effort of decoding a MiniSEED record.
Read all blocks belonging to one record in sequence. Extract all frames in all blocks in sequence (within the outer loop of reading blocks). Reading stops, if all blocks of the record are read or all frames (as indicated in the header of the record) are extracted are all expected samples are extracted. Extraction of samples stops when all samples (as indicated by the record header) are extracted.
It may appear in normal operation that the capacity of a data record is not completely used to store samples.
Definition at line 78 of file mseedread_mseedrecord_read.cc.
Referenced by datrw::mseed::operator>>().
     {
       // create block to read MiniSEED
       MiniSEEDblock block=this->readheader(is);
       // count blocks
       int iblock=0;
       // count frames
       int iframe=0;

       if (Mvalid)
       {
         // data header is present
         ++iblock;

         // For SEED data (not header fields) the byte order my differ from
         // file to file. Use the byte order defined in the Data Only SEED
         // Blockette.
         bool doswap=needswap(Mblockette1000.bytesex);

         // extract essential header data
         // -----------------------------
         //
         // number of samples to extract
         int nsamples=Mrecordheader.nsamp;
         // beginning of first frame
         int pdata=Mrecordheader.dbeg;
         // size of record in bytes
         int reclen=Mblockette1000.reclenbytes();
         // number of blocks to read for full record
         int nblocks=reclen/block.bytesize();
         // number of frames to be expected
         int nframes=(reclen-pdata)/SEED::SteimFrame::blocksize;
         // is number of frames read from file?
         bool filetellsnframes=false;
         if (Mhasblockette1001 && (!MestimateNframes))
         {
           filetellsnframes=true;
           nframes=Mblockette1001.ifcount();
           if (nframes < 1)
           {
             DATRW_warning("MiniSEEDRecord::read",
               "unreasonable number of frames ("
               << nframes <<
               ") given in blockette1001\n"
               << "      consider to use format modifier \"estimateNframes\"");
           }
         }
         // check Steim 1 encoding
         DATRW_assert(((Mblockette1000.iformat() == SEED::steim1) ||
                         (Mblockette1000.iformat() == SEED::steim2)),
                        "ERROR (reading MiniSEED record): "
                        "Can only decode Steim (1) or Steim (2) compression");
         // check size of sample buffer
         if (int(Mdata.size())<nsamples)
         { Mdata=Tseries(nsamples); }
         int isample=0;
         // x0, xn, d1
         int x0, xn, d1, sum;
         // x0 and xn are not read yet
         bool waitingforxn=true;

         // extract samples
         // ---------------
         // loop over blocks in record
         while ((iblock <= nblocks) &&
                (isample < nsamples) &&
                ((iframe < nframes) || (!filetellsnframes)))
         {
           // extract
           // (loop over frames in block)
           while (pdata < int(block.bytesize()) &&
                  (isample < nsamples) &&
                  ((iframe < nframes) || (!filetellsnframes)))
           {
             SEED::SteimFrame* pframe;
             switch (Mblockette1000.iformat())
             {
               case SEED::steim1:
                 pframe= new SEED::Steim1Frame(block.block(pdata), doswap);
                 break;
               case SEED::steim2:
                 pframe= new SEED::Steim2Frame(block.block(pdata), doswap);
                 break;
               default:
                 DATRW_abort("ERROR (reading MiniSEED record): "
                               "compression format not supported");
             }
             ++iframe;
             SEED::SteimFrame& rframe(*pframe);

             if (waitingforxn) {
               DATRW_assert((rframe.ctrl()==SEED::SteimFrame::Fspecial),
                              "ERROR (reading MiniSEED record): "
                              "missing X0");
               x0=rframe.diff();
               rframe.next();
               DATRW_assert((rframe.ctrl()==SEED::SteimFrame::Fspecial),
                              "ERROR (reading MiniSEED record): "
                              "missing XN");
               xn=rframe.diff();
               rframe.next();
               d1=rframe.diff();
               rframe.next();
               waitingforxn=false;
               Mdata(isample)=x0;
               ++isample;
               sum=x0;
               /*
                * Calculate value of last sample of previous record in order to
                * provide means for a continuous stream of sample values.
                */
               Mxm1=x0-d1;
             }
             while (rframe.valid() && (isample < nsamples))
             {
               if (rframe.ctrl() != SEED::SteimFrame::Fspecial)
               {
                 sum += rframe.diff();
                 Mdata(isample)=sum;
                 ++isample;
               }
               rframe.next();
             }
             pdata += SEED::SteimFrame::blocksize;
             delete pframe;
           } // while (pdata < int(block.bytesize()))

           // read next block
           if (iblock < nblocks)
           {
             is >> block;
             if (is.bad())
             {
               DATRW_warning("MiniSEEDRecord::read",
                 "input stream is bad!");
             }
             pdata=0;
             ++iblock;
           }
         } // while ((iblock <= nblocks) &&
           //        (isample < nsamples) &&
           //        ((iframe < nframes) || (!filetellsnframes)))
         // skip rest of blocks in record
         while (iblock < nblocks)
         {
           // read next block
           is >> block;
           if (is.bad())
           {
             DATRW_warning("MiniSEEDRecord::read",
                           "input stream is bad!");
           }
           ++iblock;
         }

         /* consistency checks
          * ==================
          * Check for data integrity, consistency, plausibility,...
          */

         /* string constant containing hint to format modifiers
          * (this is a very local constant, defined here becausing being used
          * three times)
          */
         const std::string CHintToFormatModifiers(
           "consider to use format modifiers \""
           + std::string(key::nonfatal) + "\" or \""
           + std::string(key::skipcheck) + "\"\n"
           "if you like to ignore this inconsistency");

         /* Check for usec field being in specified range
          * ---------------------------------------------
          *
          * On page 124 of "SEED Reference Manual, Standard for the Exchange of
          * Earthquake Data, SEED Format Version 2.4, August, 2012" with
          * respect to [1001] Data Extension Blockette (8 bytes):
          *
          * > field 4: BYTE: µsec has the data start time down to the
          * >   microsecond. The SEED format handles down to 100µsecs. This
          * >   field is an offset from that value. The recommended value is
          * >   from -50 to +49µsecs. At the users option, this value may be
          * >   from 0 to +99µsecs.
          */
         if (Mhasblockette1001 && Mchecks.usec.docheck)
         {
           DATRW_nonfatal_assert(Mdebug.inconsistencies_are_not_fatal
                                 || (!Mchecks.usec.fatal),
                                 (Mblockette1001.iusec()>=-50)
                                 && (Mblockette1001.iusec()<=99),
             "usec-value in MiniSEED record is out of specified range\n"
             "consistency check \"" << key::nsamples << "\" complains:\n"
             "usec-value in [1001] Data Extension Blockette: "
             << DATRW_value(Mblockette1001.iusec()) << "\n"
             "specified range SEED Reference Manual, "
             "Version 2.4, August, 2012 (page 124):\n"
             "The recommended value is from -50 to +49 usecs.\n"
             "At the users option, this value may be from 0 to +99 usecs.\n"
             << CHintToFormatModifiers);
         }

         /* Check for consistent number of samples.
          * ---------------------------------------
          *
          * Number of samples to be expected is provided in the header in
          * the fixed section data header. This value will be compared against
          * the number of samples actually provided in the logical record.
          */
         if (Mchecks.nsamples.docheck)
         {
           DATRW_nonfatal_assert(Mdebug.inconsistencies_are_not_fatal
                                 || (!Mchecks.nsamples.fatal),
                                 (isample==nsamples),
             "number of samples in MiniSEED record is inconsistent\n"
             "consistency check \"" << key::nsamples << "\" complains:\n"
             "number of samples announced in header: "
             << DATRW_value(nsamples) << "\n"
             "number of samples actually used: "
             << DATRW_value(isample) << "\n"
             << CHintToFormatModifiers);
         }

         /* Check for consistent data values.
          * ---------------------------------
          *
          * Page 142 of "SEED Reference Manual, Standard for the Exchange of
          * Earthquake Data, SEED Format Version 2.4, August, 2012":
          *
          * > The reverse integrating constant also provides for a quick data
          * > integrity check when compared with the last computed
          * > sample. A discrepancy indicates that the contents of the data are
          * > garbled.
          *
          * The sample value of the last sample in the record is compared against
          * the value of the reverse integration constant as provided in the
          * first data frame of the record.
          */
         if (Mchecks.data.docheck)
         {
           DATRW_nonfatal_assert(Mdebug.inconsistencies_are_not_fatal
                                 || (!Mchecks.data.fatal),
                                 (Mdata(isample-1)==xn),
             "data in MiniSEED record are inconsistent\n"
             "consistency check \"" << key::data << "\" complains:\n"
             "expected value of last sample "
             "(i.e. reverse integration constant): "
             << DATRW_value(xn) << "\n"
             "value of last sample ("
             << DATRW_value(isample) << ") actually read: "
             << DATRW_value(Mdata(isample-1)) << "\n"
             << CHintToFormatModifiers);
         }

         /* Check for consistent number of frames.
          * --------------------------------------
          *
          * Number of frames to be expected is provided in the header in
          * Blockette 1001. This value will be compared against the number of
          * frames actually used to store data.
          *
          * Skip this test if data file does not specify number of frames. If
          * data records are not completely filled with samples, there is no
          * reason, why we should have guessed the correct number of frames.
          */
         if (filetellsnframes && Mchecks.nframes.docheck)
         {
           DATRW_nonfatal_assert(Mdebug.inconsistencies_are_not_fatal
                                 || (!Mchecks.nframes.fatal),
                                 (iframe==nframes),
             "number of frames in MiniSEED record is inconsistent\n"
             "consistency check \"" << key::nframes << "\" complains:\n"
             "number of frames announced in header: "
             << DATRW_value(nframes) << "\n"
             "number of frames actually used: "
             << DATRW_value(iframe) << "\n"
             << CHintToFormatModifiers);
         }

         // finished successfully
         if (is.good()) { Mvalid=true; }
       }
     } // void MiniSEEDRecord::read(std::istream& is)

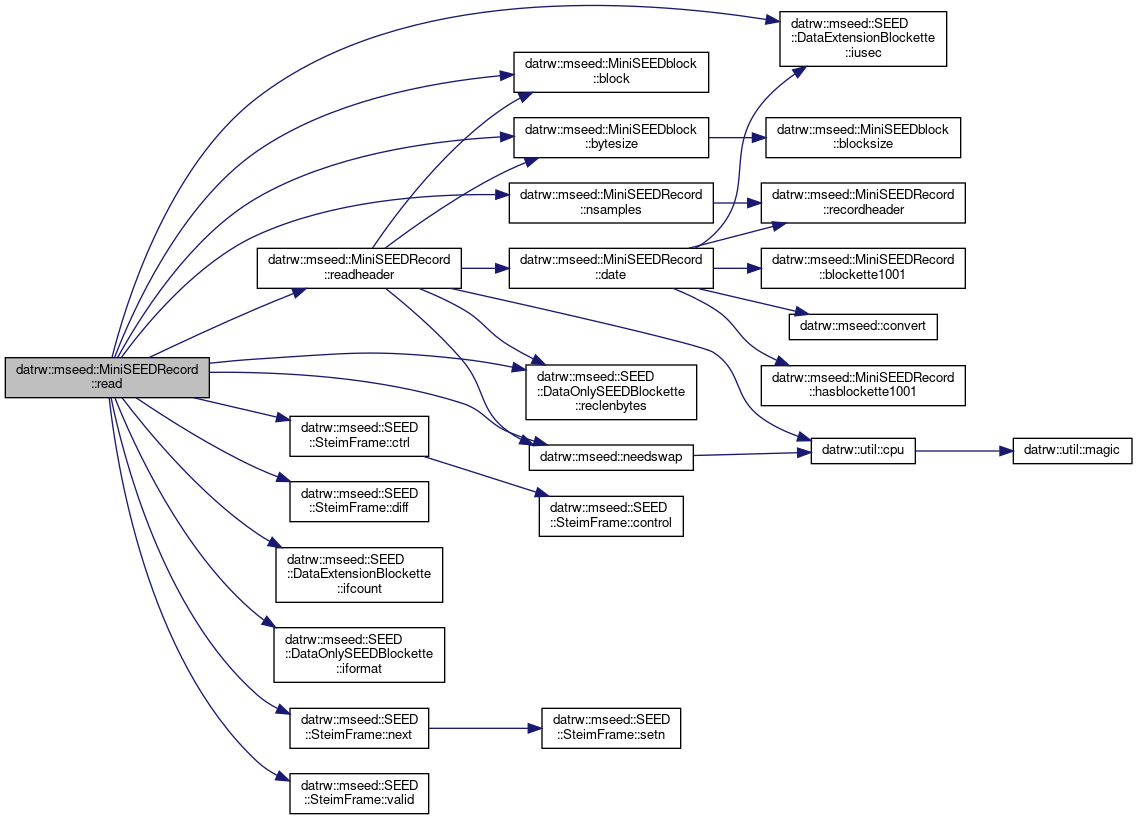

Here is the call graph for this function:
Here is the caller graph for this function:
